10194

The Carclo 10194 is a frosted 20mm diameter secondary optic manufactured in lens quality poly-carbonate and designed to collimate LED light into a narrow spot pattern. The 10194 optic is tough, impact resistant, UL rated and can withstand higher temperatures than acrylic optics. The tab on the outside edge of the optic secures the optic into a 20mm optic holder, Holder Part# 10566

LEDs & Performances

LED Compatibilty:

Manu.	Performance Data	Images	IES/STP
Cree XLamp MC-E White	Eff: 83 FWHM: 24 Cd/lm: 4.5		View
Cree XLamp MH-B White	Eff: 86.5 FWHM: 24 Cd/lm: 3.44		View
Cree XLamp XD16 Cool White	Eff: 86.5 FWHM: 12 Cd/lm: 11.6		View
Cree XLamp XHP-50 Gen 2 White	Eff: 86.5 FWHM: 27 Cd/lm: 3		View
Cree XLamp XHP-50 White	Eff: 86 FWHM: 27 Cd/lm: 2.92		View
Cree XLamp XHP35 HI White	Eff: 85.8 FWHM: 15 Cd/lm: 9.3		View
Cree XLamp XHP35 White	Eff: 85.8 FWHM: 20 Cd/lm: 5.5		View
Cree XLamp XM-L White	Eff: 82.9 FWHM: 18 Cd/lm: 8.5		View
Cree XLamp XP-E White	Eff: 86.9 FWHM: 10 Cd/lm: 20.8		View
Cree XLamp XP-G3 White	Eff: 87 FWHM: 15 Cd/lm: 8.59		View
Cree XLamp XP-L HI White	Eff: 86.2 FWHM: 13 Cd/lm: 11		View
Cree XLamp XP-L White	Eff: 85.9 FWHM: 18 Cd/lm: 6.9		View
Cree XLamp XP-L2 White	Eff: 86.5 FWHM: 20 Cd/lm: 5.4		View
Cree XLamp XQ-A Blue	Eff: 87 FWHM: 9 Cd/lm: 23.6		View
Cree XLamp XQ-A Green	Eff: 87 FWHM: 9 Cd/lm: 23.8		View
Cree XLamp XQ-A Red	Eff: 87.5 FWHM: 9 Cd/lm: 22.7		View
Cree XLamp XQ-A White	Eff: 86 FWHM: 10 Cd/lm: 23.12		View
Cree XLamp XQ-E HI Blue	Eff: 86 FWHM: 10 Cd/lm: 16.1		View
Cree XLamp XQ-E HI Green	Eff: 86 FWHM: 10 Cd/lm: 16.2		View
Cree XLamp XQ-E HI Red	Eff: 86.5 FWHM: 10 Cd/lm: 17.1		View
Cree XLamp XQ-E HI White	Eff: 86 FWHM: 10 Cd/lm: 18.13		View
Cree XLamp XT-E HE White	Eff: 87.5 FWHM: 15 Cd/lm: 9.2		View
LG 3535LG White	Eff: 85.4 FWHM: 13 Cd/lm: 14.9		View
Lite-On R38386AS – S R38 IR	Eff: 91 FWHM: 13 Cd/lm: 13.3		View
LUMILEDS LUXEON 3030 White	Eff: 84 FWHM: 13 Cd/lm: 12.12		View
LUMILEDS LUXEON 3535 HV White	Eff: 85 FWHM: 13 Cd/lm: 12.73		View
LUMILEDS LUXEON 3535 L White	Eff: 85 FWHM: 13 Cd/lm: 11.9		View
LUMILEDS LUXEON 3535L Blue	Eff: 88 FWHM: 12 Cd/lm: 12		View
LUMILEDS LUXEON 3535L Green	Eff: 88 FWHM: 12 Cd/lm: 12.5		View
LUMILEDS LUXEON 3535L Red	Eff: 88 FWHM: 10 Cd/lm: 17.1		View
LUMILEDS LUXEON 5050 White	Eff: 87.5 FWHM: 22 Cd/lm: 4.4		View
LUMILEDS LUXEON C Blue	Eff: 83 FWHM: 13 Cd/lm: 10.7		View
LUMILEDS LUXEON C Lime	Eff: 85 FWHM: 13 Cd/lm: 11.5		View
LUMILEDS LUXEON Flip Chip 05 White	Eff: 85 FWHM: 12 Cd/lm: 12.6		View
LUMILEDS LUXEON Flip Chip 10 White	Eff: 84 FWHM: 13 Cd/lm: 9.72		View
LUMILEDS LUXEON IR Compact 850nm	Eff: 91 FWHM: 12 Cd/lm: 15.4		View
LUMILEDS LUXEON IR Domed 150 Degree	Eff: 91.5 FWHM: 14 Cd/lm: 12.2		View
LUMILEDS LUXEON IR Domed 60 Degree	Eff: 89.5 FWHM: 14 Cd/lm: 11.2		View
LUMILEDS LUXEON IR Domed 90 Degree	Eff: 90.5 FWHM: 13 Cd/lm: 13.2		View
LUMILEDS LUXEON MZ White	Eff: 85.7 FWHM: 21 Cd/lm: 5.1		View
LUMILEDS LUXEON Q White	Eff: 84 FWHM: 14 Cd/lm: 9.7		View
LUMILEDS LUXEON R White	Eff: 84.4 FWHM: 14 Cd/lm: 13.3		View
LUMILEDS LUXEON Rebel ES White	Eff: 84.4 FWHM: 14 Cd/lm: 13.3		View
LUMILEDS LUXEON Rebel White	Eff: 87 FWHM: 12 Cd/lm: 16
LUMILEDS LUXEON T White	Eff: 84.4 FWHM: 14 Cd/lm: 13.3		View
LUMILEDS LUXEON TX White	Eff: 85.8 FWHM: 14 Cd/lm: 10.8		View
LUMILEDS LUXEON V Gen 2 White	Eff: 85 FWHM: 19 Cd/lm: 5.4		View
LUMILEDS LUXEON Z ES White	Eff: 85.8 FWHM: 11 Cd/lm: 15.7		View
LUMILEDS LUXEON Z White	Eff: 85.7 FWHM: 10 Cd/lm: 19		View
Nichia 229A White	Eff: 85.5 FWHM: 20 Cd/lm: 5.3		View
Nichia 757G White	Eff: 87.5 FWHM: 14 Cd/lm: 10.1		View
Nichia NCSW E17A White	Eff: 87 FWHM: 12 Cd/lm: 14.8		View

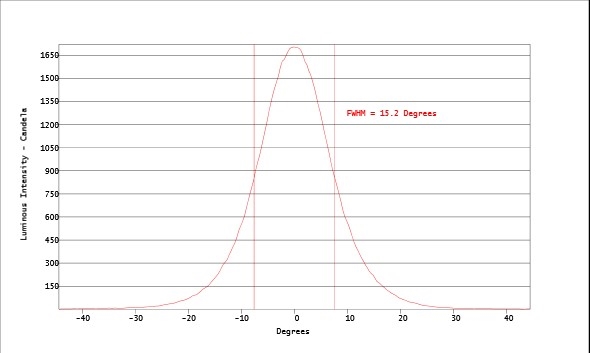

Nichia NF2W 385AR-V2 White	Eff: 87.5 FWHM: 15 Cd/lm: 8.9		View
Nichia NVSL 219B White	Eff: 85.5 FWHM: 12 Cd/lm: 12.2		View
Nichia NVSW 219C White	Eff: 86 FWHM: 15 Cd/lm: 8.6		View
Nichia NVSW 319A White	Eff: 86 FWHM: 17 Cd/lm: 7.2		View
Nichia NVSW E21A White	Eff: 84 FWHM: 13 Cd/lm: 12.9		View
Nichia Top Emitting 083 White	Eff: 85.3 FWHM: 14 Cd/lm: 8.4		View
Nichia Top Emitting NFSW 036 White	Eff: 88.2 FWHM: 9 Cd/lm: 19.8		View
Nichia Top Emitting NS3W 183T White	Eff: 88.4 FWHM: 13 Cd/lm: 9.5		View
Osram OS DURIS E 2835 White	Eff: 87.5 FWHM: 13 Cd/lm: 11.2		View
Osram OS DURIS E2 White	Eff: 86 FWHM: 11 Cd/lm: 17.37		View
Osram OS DURIS E3 White	Eff: 89.3 FWHM: 11 Cd/lm: 16.4		View
Osram OS DURIS P8 White	Eff: 85.8 FWHM: 13 Cd/lm: 11		View
Osram OS DURIS S2 White	Eff: 90.7 FWHM: 13 Cd/lm: 12.3		View
Osram OS DURIS S5 Deep Blue	Eff: 87 FWHM: 15 Cd/lm: 9.3		View
Osram OS DURIS S5 Green	Eff: 88 FWHM: 13 Cd/lm: 12.2		View
Osram OS DURIS S5 Green	Eff: 88 FWHM: 13 Cd/lm: 12.2		View
Osram OS DURIS S5 Red	Eff: 88.5 FWHM: 12 Cd/lm: 13.7		View
Osram OS DURIS S5 White	Eff: 86 FWHM: 13 Cd/lm: 11.59		View
Osram OS GOLDEN DRAGON W5SM White	Eff: 89 FWHM: 10 Cd/lm: 15		View
Osram OS OSLON Square Flat White	Eff: 87.5 FWHM: 12 Cd/lm: 13.7		View
Osram OS OSLON Square White	Eff: 85 FWHM: 13 Cd/lm: 11.41		View
Osram OS PLATINUM DRAGON W5SN White	Eff: 88 FWHM: 10 Cd/lm: 24		View
Samsung 3535 LH351B White	Eff: 85 FWHM: 15 Cd/lm: 9.71		View
Samsung 3535 LH351D White	Eff: 88 FWHM: 20 Cd/lm: 5.9		View
Samsung 3535 LH351Z White	Eff: 85.5 FWHM: 13 Cd/lm: 12.45
Samsung WH5 White	Eff: 88.3 FWHM: 16 Cd/lm: 7.1		View
Seoul MidPower MJT3030 White	Eff: 86 FWHM: 13 Cd/lm: 11.4		View
Seoul MidPower MJT4040 White	Eff: 87 FWHM: 16 Cd/lm: 6.9		View
Seoul P4 White	Eff: 85.06 FWHM: 20 Cd/lm: 5.7		View
Seoul SZ8Y19 White	Eff: 87 FWHM: 14 Cd/lm: 8.66		View
Seoul Z – Power Z5 M1 White	Eff: 86 FWHM: 14 Cd/lm: 10.8		View
SSC Acrich A2000 White	Eff: 85.3 FWHM: 23 Cd/lm: 5.3		View
SSC P5-II RGB	Eff: 90 FWHM: 17 Cd/lm: 6.6		View
