Part no. 10195
Drawing no. 60431
Family 20mm
Type TIR
Diameter 20.0
Beam Medium Spot
Finish Frosted
 |
 |
LEDs & Performances
Fits Holder: 10425
Suits following LEDS
| Manu. | Performance Data | Images | IES/STP |
|---|---|---|---|
 Cree XLamp MC-E White |
Eff: 78 FWHM: 28 Cd/lm: 2.6 |
 |
View |

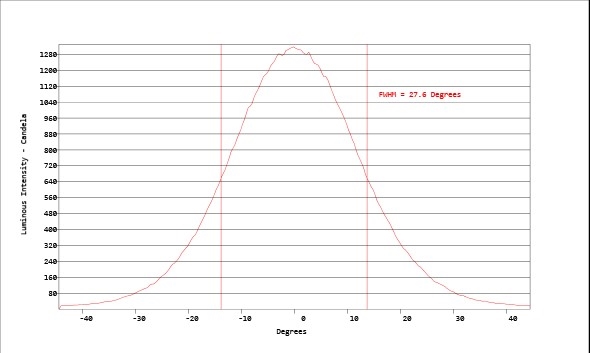

Cree XLamp MH-B White |
Eff: 86.5 FWHM: 27 Cd/lm: 2.44 |
  |
View |

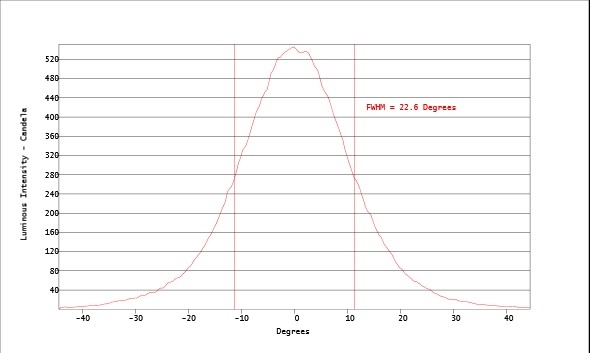

Cree XLamp XD16 Cool White |
Eff: 86.5 FWHM: 23 Cd/lm: 3.4 |
  |
View |

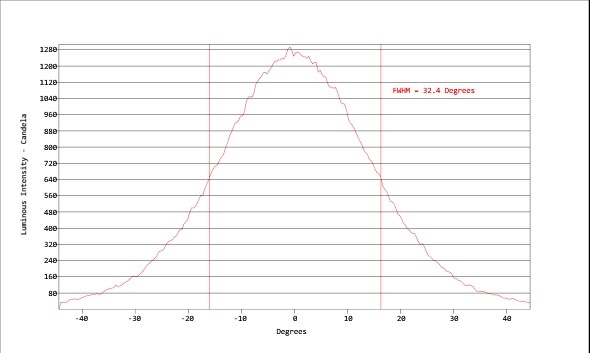

Cree XLamp XHP-50 Gen 2 White |
Eff: 86 FWHM: 33 Cd/lm: 2 |
  |
View |

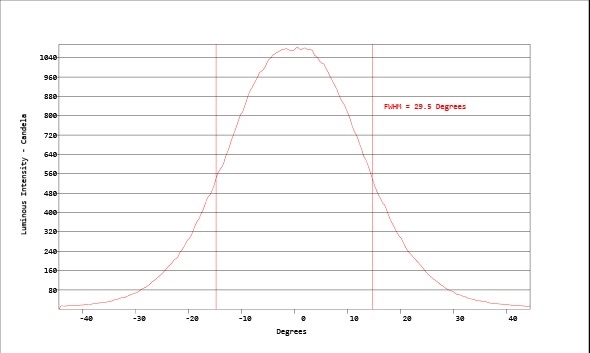

Cree XLamp XHP-50 White |
Eff: 85.8 FWHM: 30 Cd/lm: 2.3 |
  |
View |

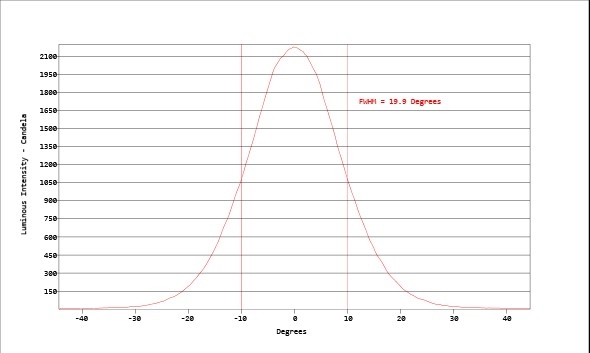

Cree XLamp XHP35 HI White |
Eff: 86 FWHM: 20 Cd/lm: 4.8 |
  |
View |

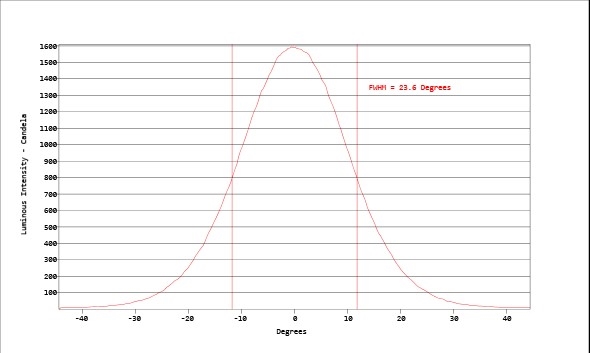

Cree XLamp XHP35 White |
Eff: 85.9 FWHM: 24 Cd/lm: 3.4 |
  |
View |

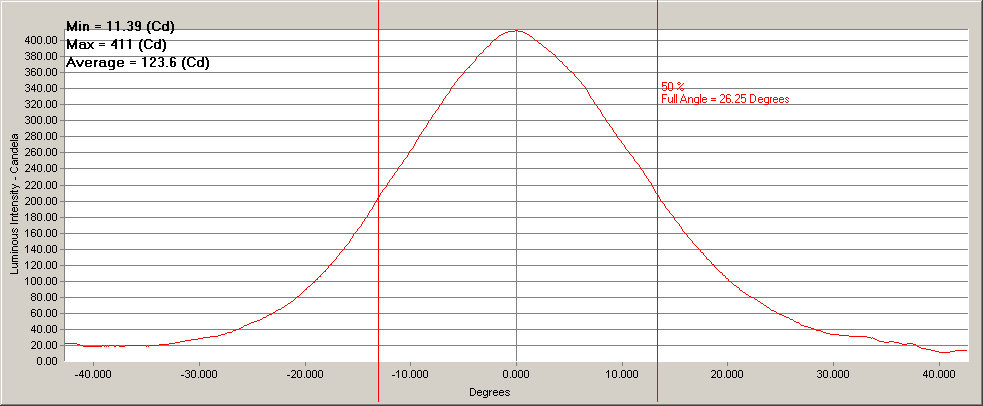

Cree XLamp XM-L White |
FWHM: 26 Cd/lm: 3.9 |
  |
View |

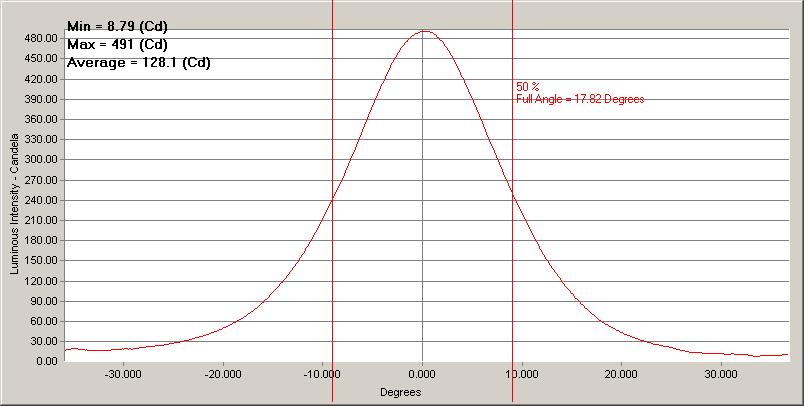

Cree XLamp XP-E White |
Eff: 82.9 FWHM: 18 Cd/lm: 6 |
  |
View |

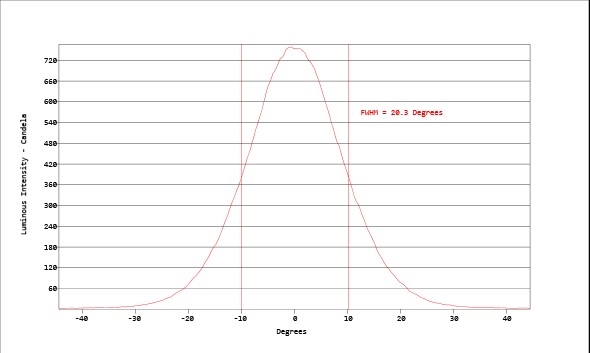

Cree XLamp XP-G3 White |
Eff: 87 FWHM: 20 Cd/lm: 4.45 |
  |
View |

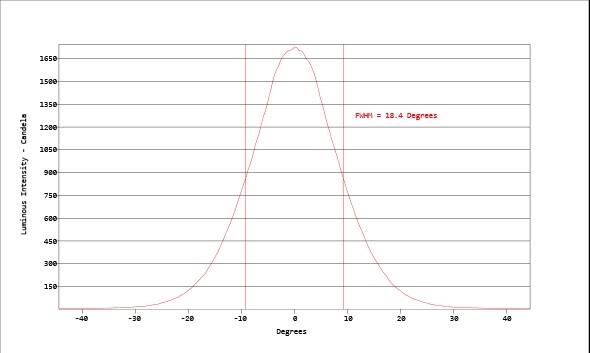

Cree XLamp XP-L HI White |
Eff: 86.3 FWHM: 19 Cd/lm: 5.2 |
  |
View |

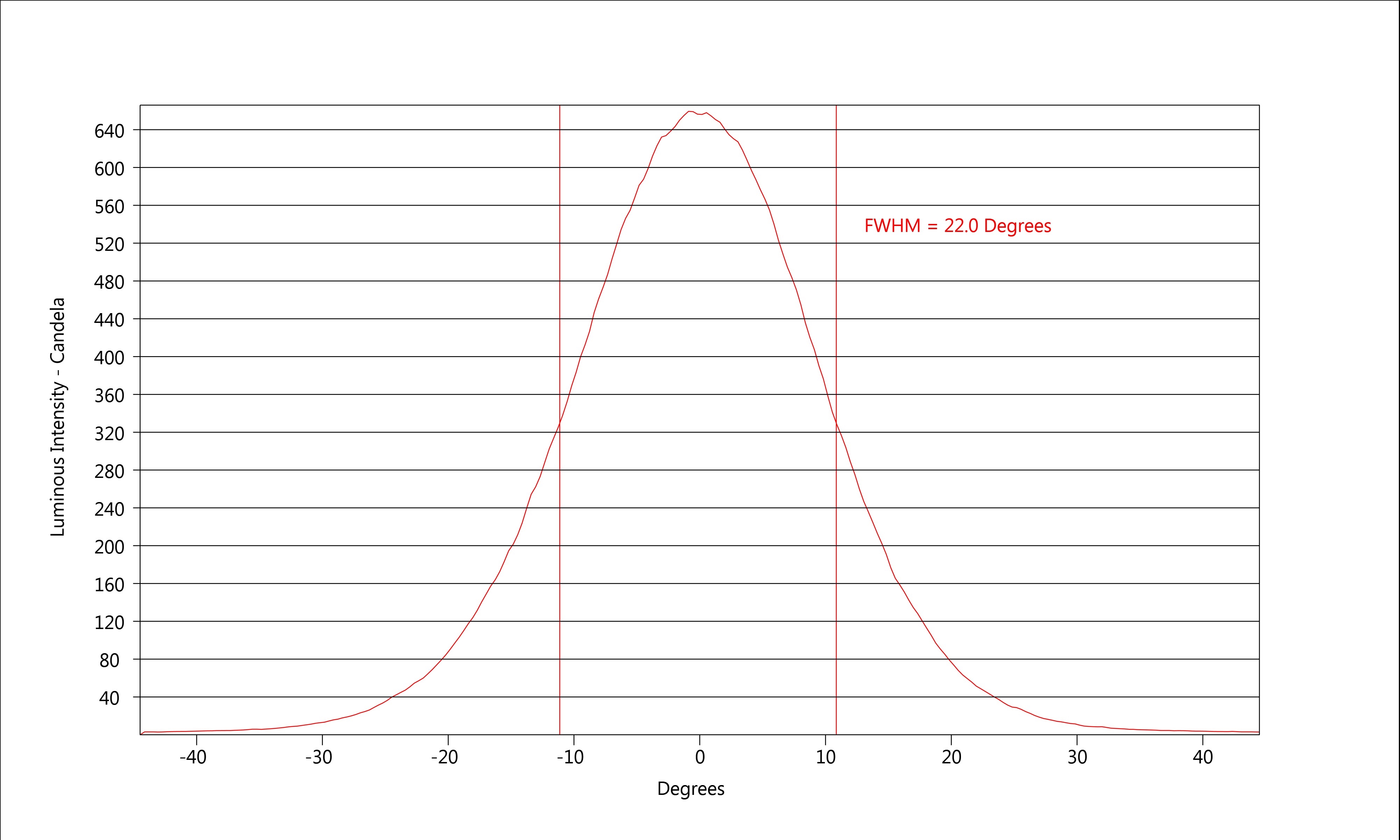

Cree XLamp XP-L White |
Eff: 86 FWHM: 22 Cd/lm: 4 |
  |
View |

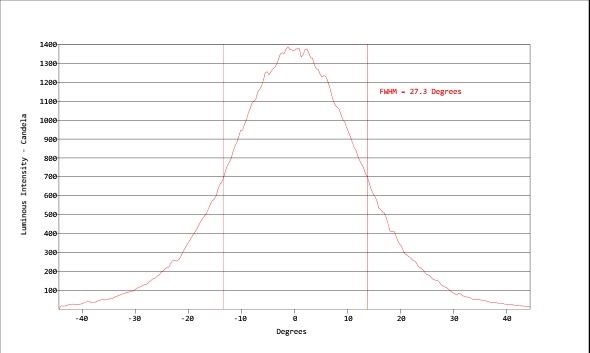

Cree XLamp XP-L2 White |
Eff: 86.5 FWHM: 28 Cd/lm: 2.7 |
  |
View |

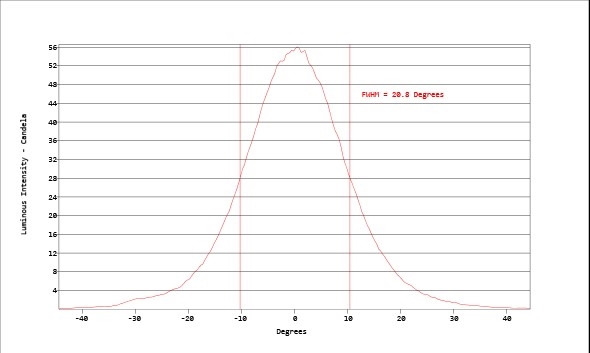

Cree XLamp XQ-A Blue |
Eff: 87 FWHM: 21 Cd/lm: 4.5 |
  |
View |

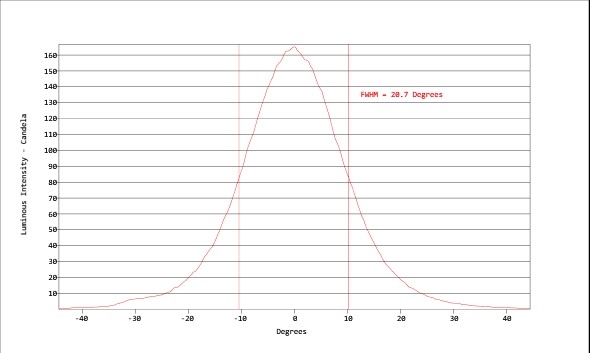

Cree XLamp XQ-A Green |
Eff: 87 FWHM: 21 Cd/lm: 4.5 |
  |
View |

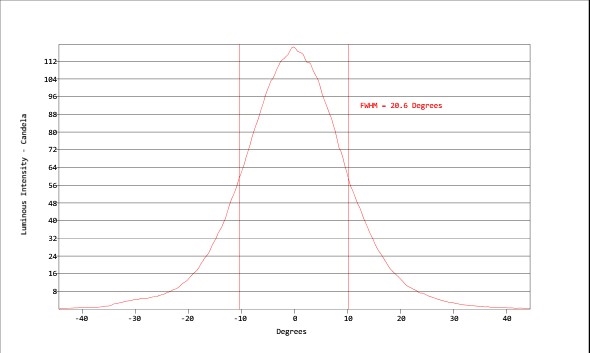

Cree XLamp XQ-A Red |
Eff: 87.5 FWHM: 21 Cd/lm: 4.6 |
  |
View |

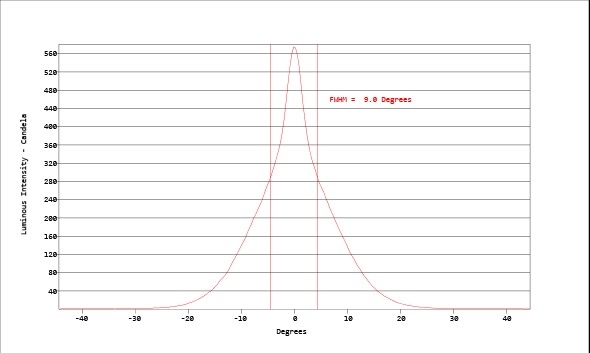

Cree XLamp XQ-A White |
Eff: 86 FWHM: 9 Cd/lm: 11.4 |
  |
View |

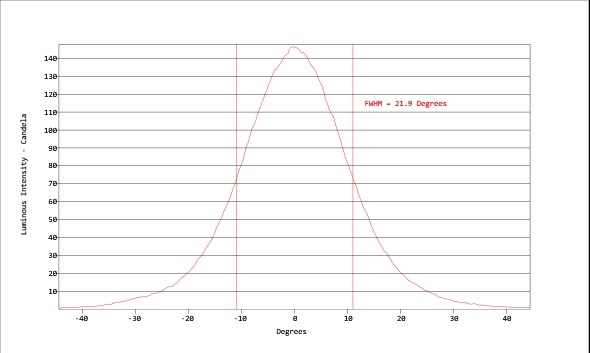

Cree XLamp XQ-E HI Blue |
Eff: 86 FWHM: 22 Cd/lm: 3.9 |
  |
View |

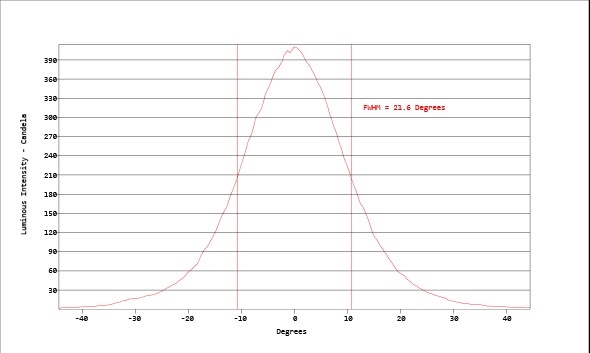

Cree XLamp XQ-E HI Green |
Eff: 86 FWHM: 22 Cd/lm: 3.8 |
  |
View |

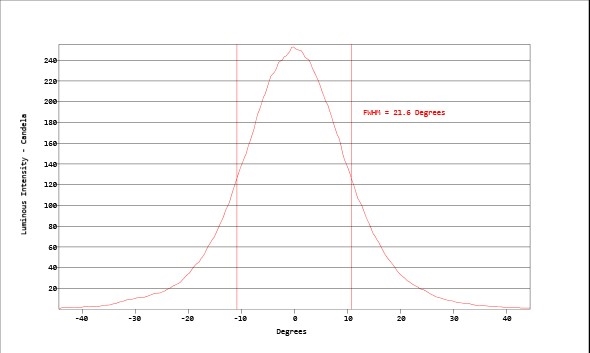

Cree XLamp XQ-E HI Red |
Eff: 86 FWHM: 22 Cd/lm: 3.9 |
  |
View |

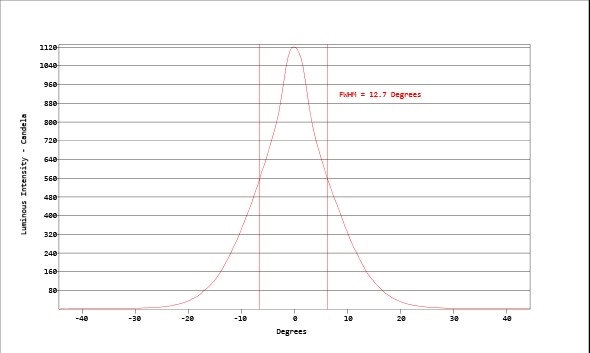

Cree XLamp XQ-E HI White |
Eff: 86 FWHM: 13 Cd/lm: 7.63 |
  |
View |

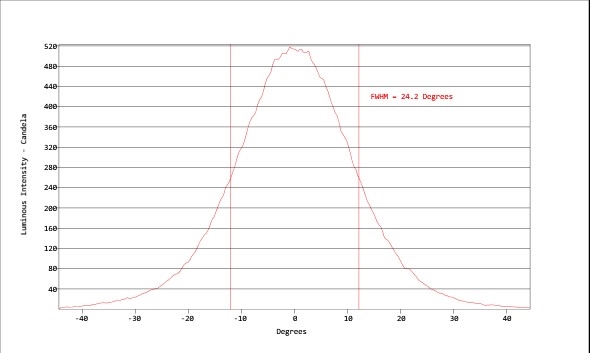

Cree XLamp XT-E HE White |
Eff: 87.5 FWHM: 25 Cd/lm: 3.3 |
  |
View |
Brand
Carclo Optics
| Weight | 0.01 kg |
|---|---|
| Dimensions | 10 × 18 × 10 mm |
