$1.16 EX GST

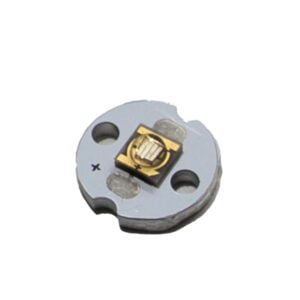

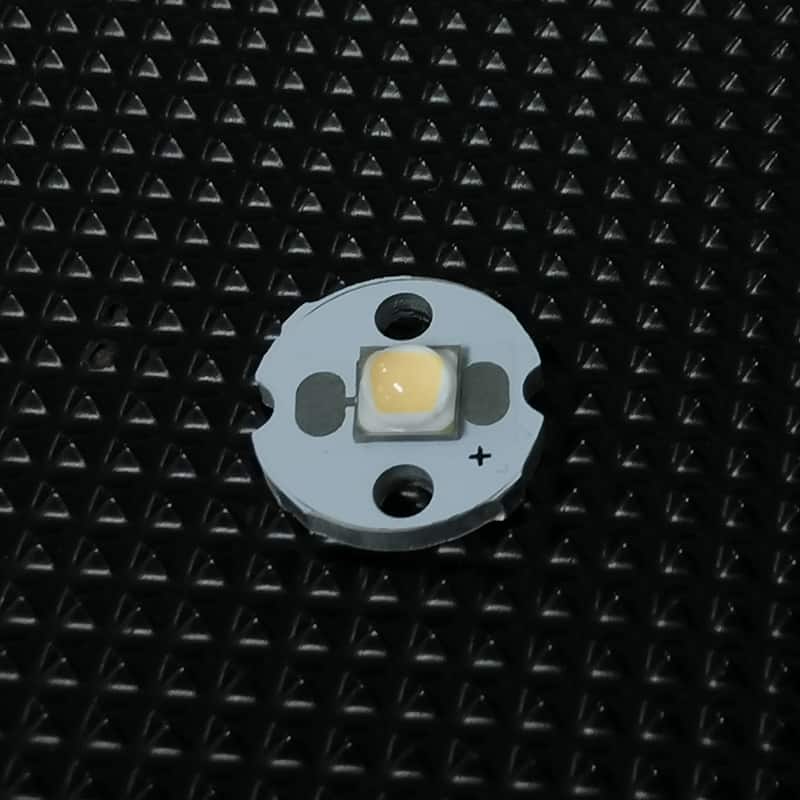

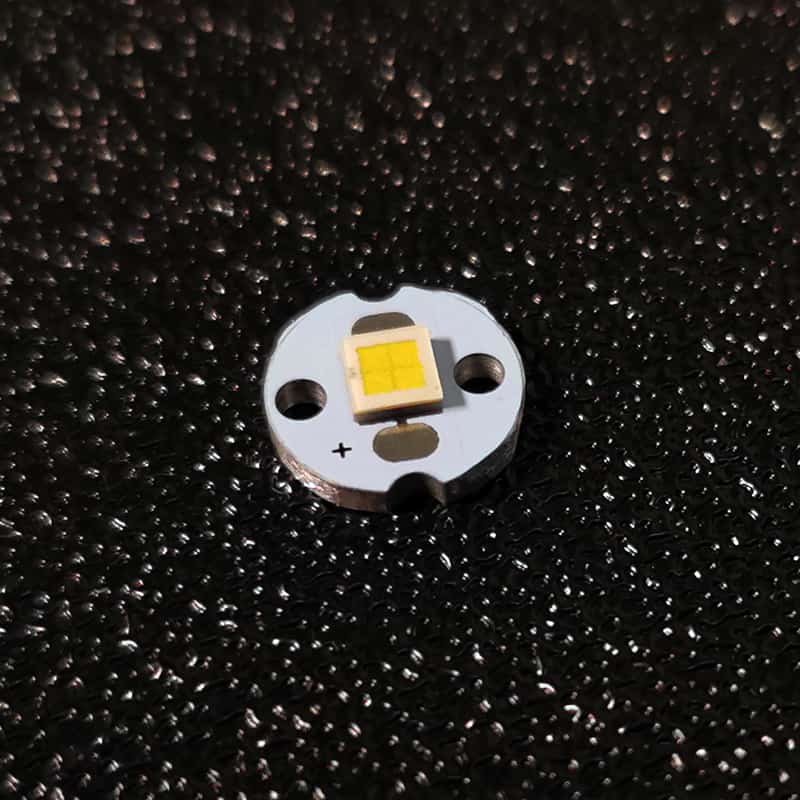

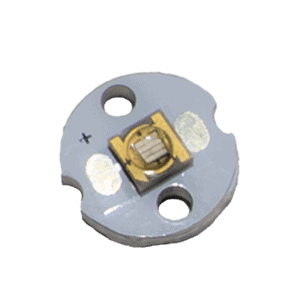

Aluminium MCPCB for Cree XP/XT/XHP35 series, 10mm x 2.0mm
Available on back-order
| Price Break Qty | Discounted Price |
|---|---|
| 1 - 9 | $1.16 |
| 10 - 49 | $1.13 |
| 51 - 100 | $1.04 |
| 101 - 500 | $0.88 |
| 501 - 1000 | $0.81 |

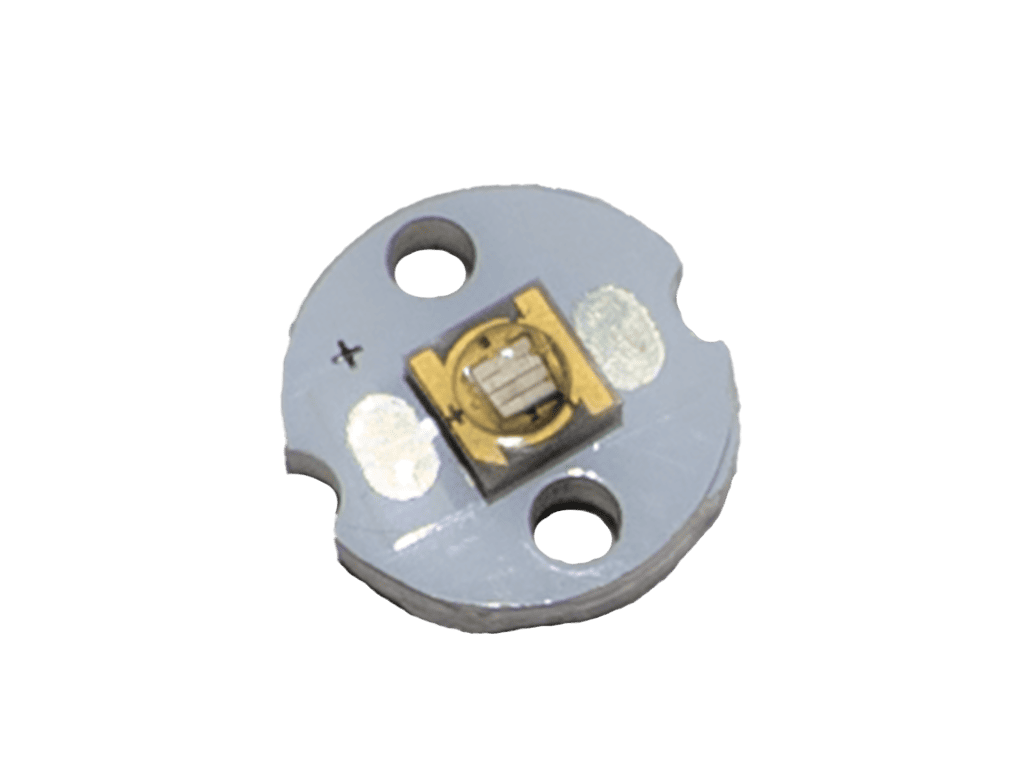

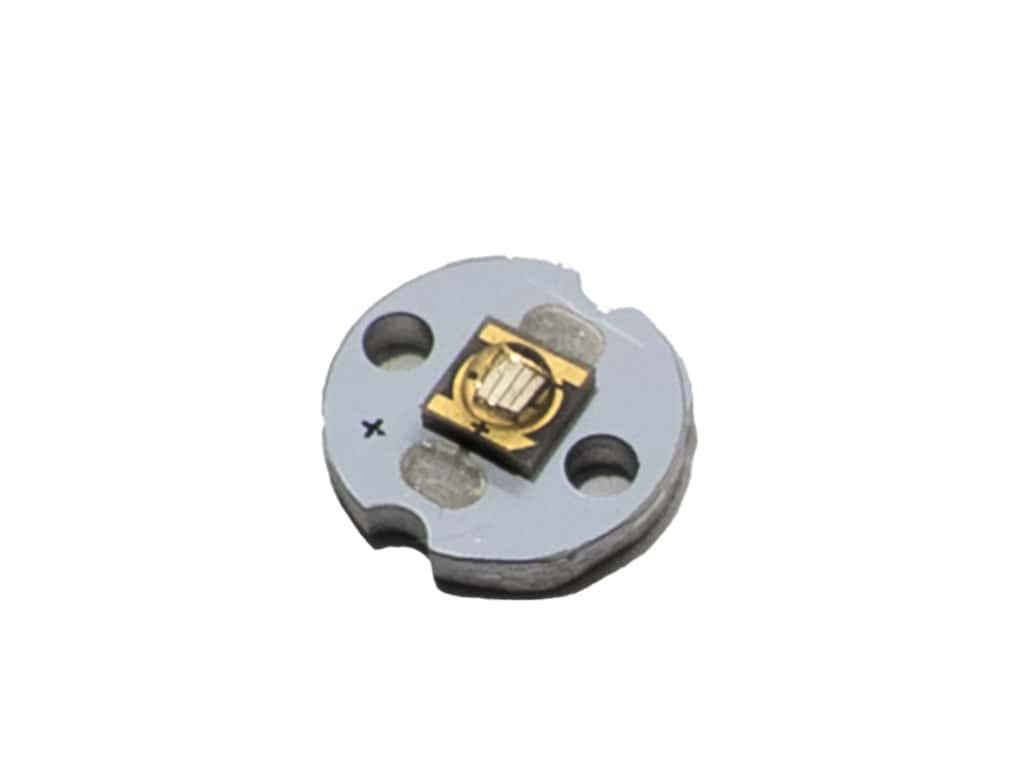

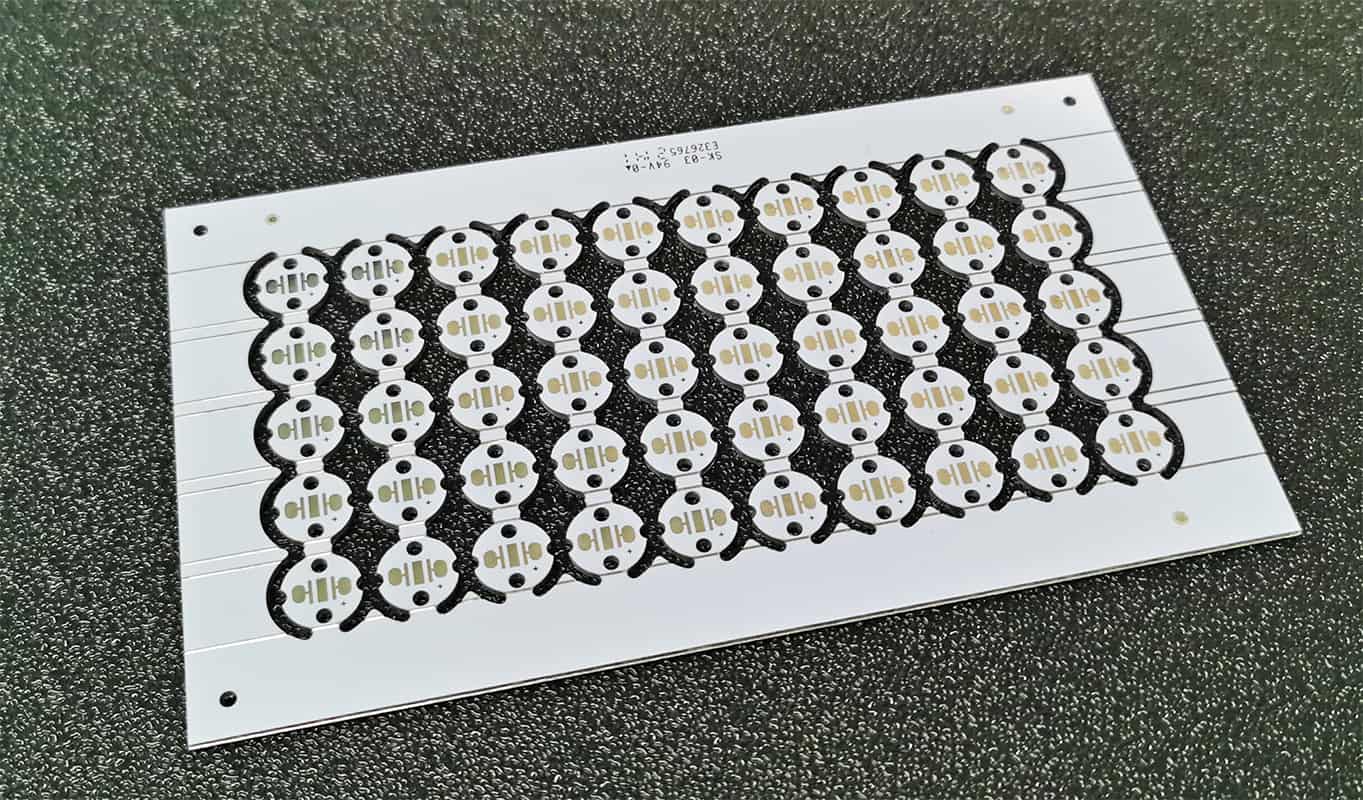

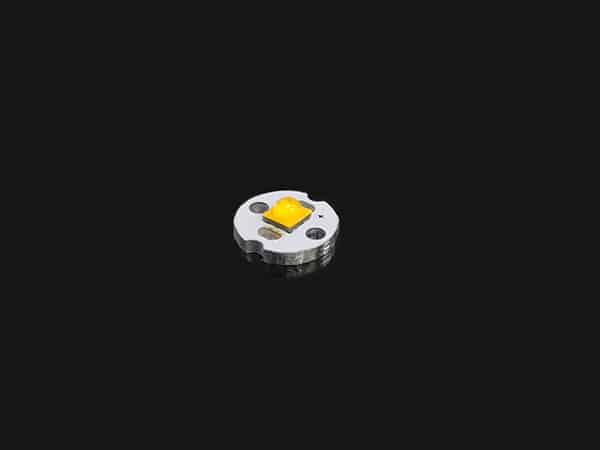

This Aluminium PCB is part of a range of 10mm MCPCB’s we offer. It is designed to take a single led and is designed for, Cree XP/XT/XHP35 and other led’s with the same base dimensions collectively called 3535 leds. When ordered in increments of 50, we will supply in panellised form for SMD manufacturing.
Direct Thermal Path : Dielectric under the thermal pad of LED
The MCPCB-XP10-RoundSTD module requires attention to mounting and cooling to ensure that the junction temperature of the LED is kept well below the maximum rating as specified in the LED documentation published by Led Manufacturers
For optimal cooling, we recommend that the module be mounted to a suitable finned heat sink (aluminium or copper) that is exposed to open air. The module can be mounted to a heat sink in various ways
- 10mm pressure sensitive, thermally conductive tape (Recommended)
- Thermal Compound: Requires the use of mechanical fasteners
Before fastening the module to the heat sink, ensure that the two mating surfaces are perfectly flat and clean in order to maximise heat transfer to the the sink.
The bottom of the LED MCPCB is electrically neutral, so it is not necessary to electrically isolate the base from the cooling surface.
Please note the use of Thermal Adhesives makes the PCB unlikely to be removed for servicing. Please consider this if removal of the board is desired as another TIM may be a better choice.
Optics Support: The board can be used with Ledil, Carclo, Khatod etc Optics or other optics compatible with this LED
Assembly Guide for Optics: Ledil have a good generic guide on assembly of Leds/Optics, adhesives etc. Download
Termination: The PCB has 2 edge Anode and Cathode pads so wire can be soldered to top pads, close to the board edge
Specifications
| PART # | MCPCB-XP10-RoundSTD |
|---|---|
| PCB TECHNOLOGY | Aluminium |
| PCB TYPE | 10 mm Round PCB |
| PCB SIZE | 10mm x 2.0mm |
| BASE METAL TYPE | Aluminium |
| FINISH THICKNESS | 0.065”(1.65mm) |
| DIRECT THERMAL PATH | YES |
| THERMAL CONDUCTIVITY | 3 W/m.K |
| SURFACE FINISH | ENIG |
| GLASS TRANSITION TEMP. | 170 degree Celsius |
| COMPATIBLE LED | Cree XP/XT/XHP35 |
| Weight | 0.05 kg |
|---|---|
| Dimensions | 10 × 10 × 2 mm |
| MCPCB Material | Aluminium |
| PCB Size | |
| PCB by Led Type | Cree XHP35, Cree XPE/G/C, Cree XTE, Lumileds LUXEON HL2X, Nichia NVSW519A-V1, NVSW219C-V2, Samsung LH351B, Samsung LH351C, Samsung LH351D |
| Thermal Conductivity | |
| Total Led Quantity per PCB | |
| PCB Solder Mask Colour | |
| PCB On Board Configuration | |
| PCB Material |
