LZ1-00R200

The LZ1-00R200 Deep Red LED emitter generates 900mW nominal output at 2.5W power dissipation in an extremely small package. The LZ1-00R200 LED emitter provides superior radiometric power in the wavelength range specifically required for plants’ chlorophyll a absorption. With a 4.4mm x 4.4mm ultra-small footprint, this package provides exceptional radiant flux density. The patent-pending design has unparalleled thermal and optical performance. The high quality materials used in the package are chosen to optimize light output and minimize stresses which results in monumental reliability and lumen maintenance. The robust product design thrives in outdoor applications with high ambient temperatures and high humidity.

Key Features:

• High Efficacy 2.5W Deep Red LED
• Ultra-small footprint – 4.4mm x 4.4mm
• Surface mount ceramic package with integrated glass lens
• Very high Radiant Flux density
• Autoclave compliant (JEDEC JESD22-A102-C)
• JEDEC Level 1 for Moisture Sensitivity Level
• Lead (Pb) free and RoHS compliant
• Reflow solderable (up to 6 cycles)

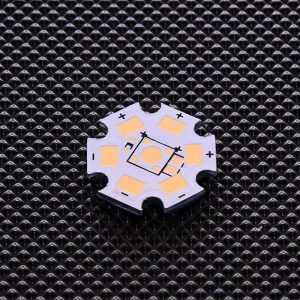

• Emitter available on Standard or Miniature MCPCB (optional)

Typical Applications:

• Horticulture
• Photo Therapy
• Machine Vision
• Medical
