Price range: $2.55 through $18.71 EX GST
Select from Show All Variatons for LED on PCB or click here for Details on all available Printed Circuit boards to suit this LED
Cree XPG-3 Led, 4000 Kelvin, 40G Bin, Min 80 CRI, S5 Flux
| Price Break Qty | Discounted Price |
|---|---|
| 1 - 9 | $2.55 |
| 10 - 49 | $2.47 |
| 51 - 100 | $2.30 |
| 101 - 500 | $1.94 |
| 501 - 1000 | $1.79 |
XLamp XP-G3
XPGDWT-H1-0000-00L5E is part of the new XLamp® XP-G3 LEDs are optimized for directional, high‑lumen lighting applications where efficacy and optical control are critical, such as roadway, portable and horticulture. The compact and proven 3.45‑mm XP platform has an excellent ecosystem of optics and system solutions available, enabling lighting manufacturers to simplify their design process and shorten time‑to‑market.
| Size | 3.45 x 3.45 mm |
|---|---|
| Product Options | White Royal Blue |
| Maximum Drive Current (Standard) | 2.0 A |
| Max Power (W) | 6 W |
| Max Light Output (lm) | 777 lm |
| Maximum Efficacy at Binning Conditions (lm/W) | 190 lm/W |
| Typical Forward Voltage | 2.73 V White @ 350 mA |
| Maximum Reverse Voltage | 5 V |
| Viewing Angle | 125 ° |
| Maximum Junction Temperature | 150 °C |
| Binning | 85°C ANSI 3- and 5-Step EasyWhite® |
| Maximum ESD Withstand Voltage | 8000 V (HBM per Mil-Std-883D) |
| Reflow Solderable | Yes – JEDEC J-STD-020C-compatible |
| RoHS-Compliant | Yes |
| REACh-Compliant | Yes |
| UL-Recognized | Yes – Level 4 Enclosure Consideration |
| Weight | 0.03 kg |
|---|---|
| Dimensions | 3.5 × 3.5 × 4 mm |
| Colour Bins-Discrete Leds | |

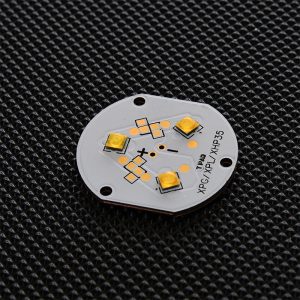

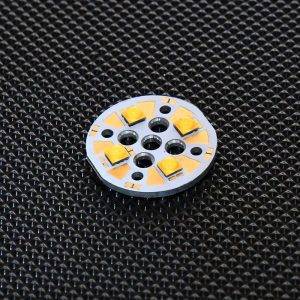

| LED Mounting Options | Led Only, Linear PCB, Round PCB, Solderless, Square PCB, Star PCB |
| PCB Size | No PCB, 10mm, 12mm, 14mm, 16mm, 18mm, 20mm, 24mm x 16mm, 24mm, 25mm, 32mm- Parallel, 38mm, 40mm x 20mm, 40mm, 48mm, 55 x 59mm, 86mm x 25mm, 111mm x 66mm, 120mm x 25mm, 152mm x 84mm |
| Colour(CCT) | |
| Led Colour | |
| CRI |
Brand
Cree LED
